• Z71 Package, Off-Road includes monotube Rancho brand shocks, (K47) air cleaner, (JHD) Hill Descent Control, (NZZ) underbody shield on 4WD models and (V76) recovery hooks. Also includes brushed metal Z71 door sill plate, unique Z71 gauge cluster, unique finish interior trim plates, unique lower bumper appearance, unique grille design with Z71 badge and Z71 pickup box decals (Includes (Z82) Trailering Package, (G80) locking rear differential and (RC3) AT 17" tire and (Q5U) 17" bright machined wheel. Upgradeable to (RD1) 18" bright machined wheels, (RD4) 20" polished-aluminum wheels or 22" LPO wheels.)
• Vehicle control, hill descent
• Transfer case, electronic Autotrac with rotary dial control (Included with 4WD models only.)
• Differential, heavy-duty locking rear
• Four wheel drive
• Air cleaner, high-capacity
• Battery, heavy-duty 730 cold-cranking amps/70 Amp-hr, maintenance-free with rundown protection and retained accessory power
• Alternator, 150 amps
• Underbody shield, transfer case protection (Requires 4WD models.)
• Frame, fully-boxed, hydroformed front section
• Body, Pick Up Box
• Steering, Electric Power Steering (EPS) assist, rack-and-pinion
• Brakes, 4-wheel disc with DURALIFE rotors, 4-wheel antilock
• Exhaust, aluminized stainless-steel muffler and tailpipe
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist

• Wheels, 17" x 8" (43.2 cm x 20.3 cm) bright machined aluminum
• Tires, P265/70R17 all-terrain, blackwall
• Wheel, full-size spare, 17" (43.2 cm) steel
• Tire, spare P265/70R17 all-season, blackwall (Included and only available with (RC3), (RBX) or (RBW).)
• Tire carrier lock, keyed cylinder lock that utilizes same key as ignition and door
• Bumper, front chrome
• Bumper, rear chrome
• Recovery hooks, front, frame-mounted, black
• Lamps, cargo area, cab mounted with switch on center switch bank
• Tailgate and bed rail protection cap, top
• Tailgate, locking utilizes same key as ignition and door
• Tailgate, EZ-Lift and Lower
• CornerStep, rear bumper
• Wheelhouse liners, rear
• Grille surround, chrome
• Headlamps, halogen reflector
• Fog lamps, front, halogen
• Mirrors, outside heated power-adjustable, black (includes driver's side spotter mirror)
• Glass, deep-tinted
• Door handles, Black

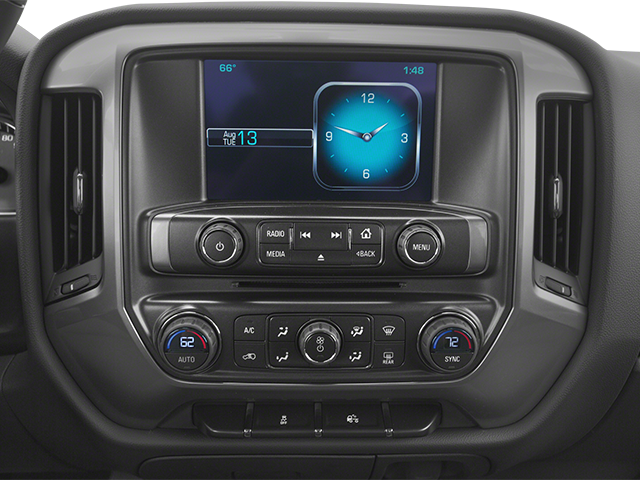

• Chevrolet MyLink audio system, 4.2" diagonal color screen with AM/FM stereo, USB ports auxiliary jack, SD card slot, Bluetooth® streaming audio for music and most phones, hands-free smartphone integration, Pandora Internet radio and voice-activated technology for radio and phone
• Single-slot CD/MP3 player
• SiriusXM Satellite Radio and HD Radio SiriusXM Satellite Radio is standard on nearly all 2014 GM models. Enjoy a 3-month trial to the XM All Access package, with over 150 channels including commercial-free music, all your favorite sports, exclusive talk and entertainment. With All Access, listen to everything, everywhere, in your car and on your computer, smartphone or tablet. (If you decide to continue your service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call 1-866-635-2349 to cancel. See SiriusXM Customer Agreement for complete terms at siriusxm.com. Other fees and taxes will apply. All fees and programming subject to change. IMPORTANT: The SiriusXM Satellite Radio trial package is not provided on vehicles that are ordered for Fleet Daily Rental ("FDR") use.)
• 6-speaker audio system
• Bluetooth® for phone, personal cell phone connectivity to vehicle audio system

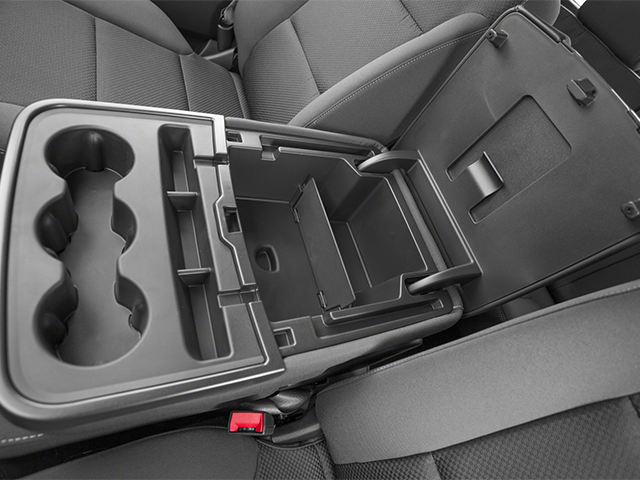

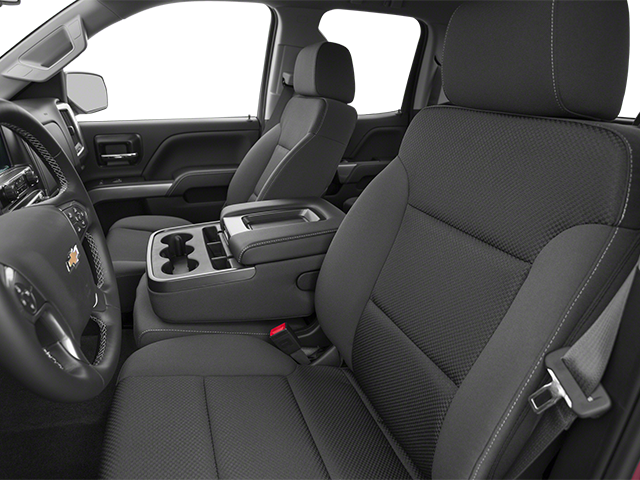

• Seats, front 40/20/40 split-bench, 3-passenger, available in cloth or leather includes driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Also includes manually adjustable driver lumbar, lockable storage compartment in seat cushion, and storage pockets. (Leather with (KA1) heat is an available extra charge option with (H1Y) Jet Black leather appointed interior trim and requires (PCM) LT Convenience Package or (PDU) All Star Edition.)
• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Double Cab and Crew Cabs include second row floor mats)

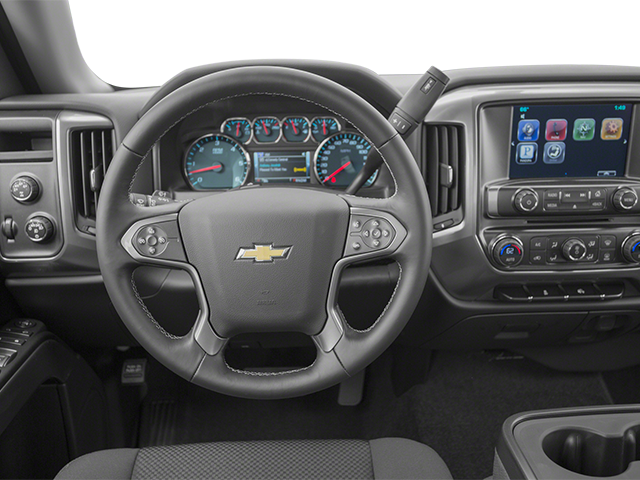

• Steering wheel, leather-wrapped with audio and cruise controls
• Steering column, Tilt-Wheel, manual with theft-deterrent locking feature
• Steering wheel audio controls
• Driver Information Center, 4.2-inch diagonal color display includes driver personalization, warning messages and vehicle information

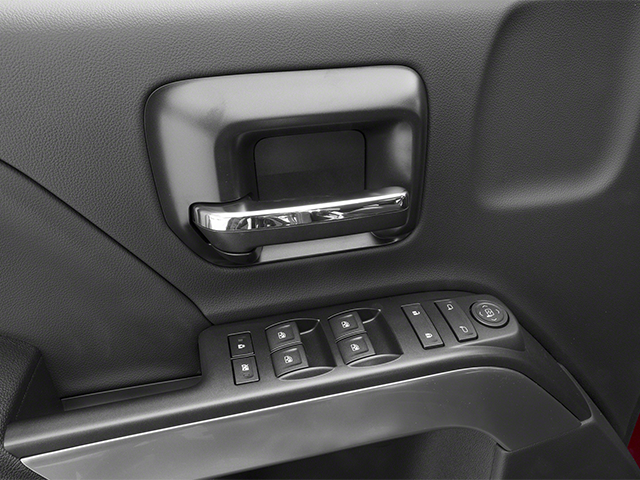

• Windows, power front and rear with driver express up and down and express down on all other windows
• Door locks, power
• Remote Keyless Entry, with 2 transmitters
• Cruise control, electronic with set and resume speed, steering wheel-mounted
• Air conditioning, single-zone
• Visors, driver and front passenger illuminated vanity mirrors
• Assist handle, front passenger on A-pillar

• Daytime Running Lamps with automatic exterior lamp control
• Airbags, Dual-stage frontal airbags for driver and front passenger, seat-mounted side-impact airbags for driver and front outboard passenger, and head-curtain side-impact airbags for front and rear outboard seating positions; includes Passenger Sensing System (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar, 6 months of Directions and Connections plan includes Automatic Crash Response, Stolen Vehicle Assistance, Roadside Assistance and Turn-by-Turn Navigation (Visit onstar.com for coverage map, details and system limitations. Services vary by model and conditions.)
• Tire Pressure Monitoring System (does not apply to spare tire)

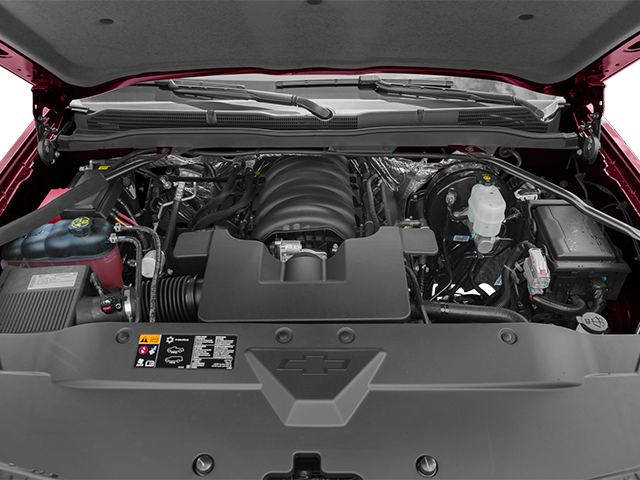

ENGINE, 4.3L FLEXFUEL ECOTEC3 V6 WITH ACTIVE FUEL MANAGEMENT, DIRECT INJECTION AND VARIABLE VALVE TIMING

• includes aluminum block construction with FlexFuel capability
• capable of running on unleaded or up to 85% ethanol (285 hp [212 kW] @ 5300 rpm
• 305 lb-ft of torque [413 Nm] @ 3900 rpm) (STD)

• AZ3-F
• IO5-R
• KA1-R
• LV3
• MYC
• PCW-R
• PDU-R

• Mileage
• Fuel Economy Est-Combined (MPG): 19
• EPA Fuel Economy Est - City (MPG): 17
• EPA Fuel Economy Est - Hwy (MPG): 22
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): 14.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3950
• Gross Axle Wt Rating - Rear (lbs): 3950
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 7100
• Gross Combined Wt Rating (lbs): 12000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7100
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1065
• Maximum Trailering Capacity (lbs): 9600
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 3950
• Spring Capacity - Rear (lbs): 3950
• Axle Type - Front: Independent Driving
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3950
• Axle Capacity - Rear (lbs): 3950
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 46
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.35
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.79
• Tires
• Front Tire Order Code: RC3
• Rear Tire Order Code: RC3
• Spare Tire Order Code: RC4
• Front Tire Size: P265/70R17
• Rear Tire Size: P265/70R17
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): 3950
• Rear Tire Capacity (lbs): 3950
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 8.0
• Rear Wheel Size (in): 17 x 8.0
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), On Center: 16.3
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 46.9
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 143.5
• Length, Overall w/o rear bumper (in): 230.03
• Width, Max w/o mirrors (in): 80.0
• Height, Overall (in): 73.90
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 141.37
• Cab to Axle (in): 41.50
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 34.5
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.87
• Ground Clearance, Rear (in): 8.87
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.87
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 64.6
• Cargo Box Width @ Wheelhousings (in): 51.03
• Cargo Box (Area) Height (in): 21.10
• Tailgate Width (in): 62.2
• Cargo Volume (ft³): 61.0
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 65.93
• Front Hip Room (in): 60.73
• Second Head Room (in): 38.67
• Second Leg Room (in): 34.63
• Second Shoulder Room (in): 65.80
• Second Hip Room (in): 60.23
• Summary
• Vehicle Name: Chevrolet Silverado 1500
• Body Style: Double Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.5
